Single line edit box for editing simple text. More...

#include <duckcpp/core/engine/IGUIEditBox.hpp>

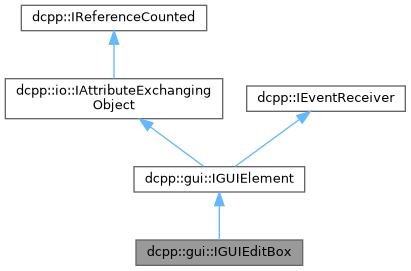

Inheritance diagram for dcpp::gui::IGUIEditBox:

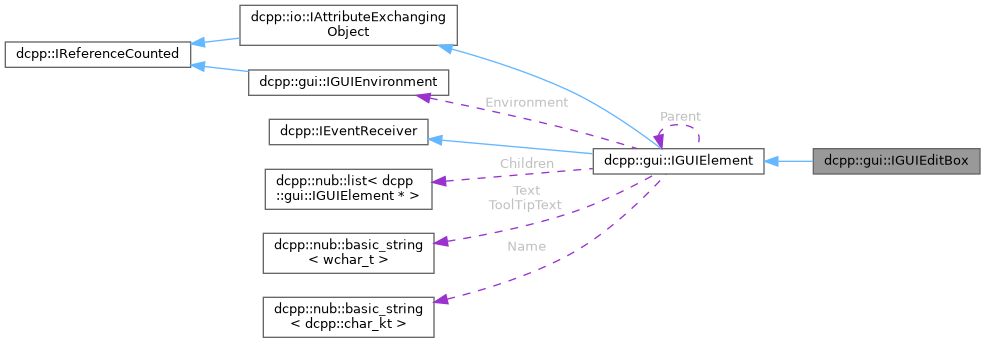

Collaboration diagram for dcpp::gui::IGUIEditBox:

Public Member Functions
	IGUIEditBox (IGUIEnvironment environment, IGUIElement parent, dcpp::int32_kt id, dcpp::nub::recti rectangle)
	constructor

virtual void	setOverrideFont (IGUIFont *font=0)=0
	Sets another skin independent font.

virtual IGUIFont *	getOverrideFont () const =0
	Gets the override font (if any)

virtual IGUIFont *	getActiveFont () const =0
	Get the font which is used right now for drawing.

virtual void	setOverrideColor (dcpp::video::SColor color)=0
	Sets another color for the text.

virtual dcpp::video::SColor	getOverrideColor () const =0
	Gets the override color.

virtual void	enableOverrideColor (bool enable)=0
	Sets if the text should use the override color or the color in the gui skin.

virtual bool	isOverrideColorEnabled (void) const =0
	Checks if an override color is enabled.

virtual void	setDrawBackground (bool draw)=0
	Sets whether to draw the background.

virtual bool	isDrawBackgroundEnabled () const =0
	Checks if background drawing is enabled.

virtual void	setDrawBorder (bool border)=0
	Turns the border on or off.

virtual bool	isDrawBorderEnabled () const =0
	Checks if border drawing is enabled.

virtual void	setTextAlignment (EGUI_ALIGNMENT horizontal, EGUI_ALIGNMENT vertical)=0
	Sets text justification mode.

virtual void	setWordWrap (bool enable)=0
	Enables or disables word wrap.

virtual bool	isWordWrapEnabled () const =0
	Checks if word wrap is enabled.

virtual void	setMultiLine (bool enable)=0
	Enables or disables newlines.

virtual bool	isMultiLineEnabled () const =0
	Checks if multi line editing is enabled.

virtual void	setAutoScroll (bool enable)=0
	Enables or disables automatic scrolling with cursor position.

virtual bool	isAutoScrollEnabled () const =0
	Checks to see if automatic scrolling is enabled.

virtual void	setPasswordBox (bool passwordBox, wchar_t passwordChar=L' *')=0
	Sets whether the edit box is a password box. Setting this to true will.

virtual bool	isPasswordBox () const =0
	Returns true if the edit box is currently a password box.

virtual dcpp::nub::dimension2du	getTextDimension ()=0
	Gets the size area of the text in the edit box.

virtual void	setMax (dcpp::uint32_kt max)=0
	Sets the maximum amount of characters which may be entered in the box.

virtual dcpp::uint32_kt	getMax () const =0
	Returns maximum amount of characters, previously set by setMax();.

virtual void	setCursorChar (const wchar_t cursorChar)=0
	Set the character used for the cursor.

virtual wchar_t	getCursorChar () const =0
	Get the character used for the cursor.

virtual void	setCursorBlinkTime (dcpp::uint32_kt timeMs)=0
	Set the blinktime for the cursor. 2x blinktime is one full cycle.

virtual dcpp::uint32_kt	getCursorBlinkTime () const =0
	Get the cursor blinktime.

Public Member Functions inherited from dcpp::gui::IGUIElement
	IGUIElement (EGUI_ELEMENT_TYPE type, IGUIEnvironment environment, IGUIElement parent, dcpp::int32_kt id, const dcpp::nub::recti &rectangle)
	Constructor.

virtual	~IGUIElement ()
	Destructor.

IGUIElement *	getParent () const
	Returns parent of this element.

dcpp::nub::recti	getRelativePosition () const
	Returns the relative rectangle of this element.

void	setRelativePosition (const dcpp::nub::recti &r)
	Sets the relative rectangle of this element.

void	setRelativePosition (const dcpp::nub::position2di &position)
	Sets the relative rectangle of this element, maintaining its current width and height.

void	setRelativePositionProportional (const dcpp::nub::rectf &r)
	Sets the relative rectangle of this element as a proportion of its parent's area.

dcpp::nub::recti	getAbsolutePosition () const
	Gets the absolute rectangle of this element.

dcpp::nub::recti	getAbsoluteClippingRect () const
	Returns the visible area of the element.

void	setNotClipped (bool noClip)
	Sets whether the element will ignore its parent's clipping rectangle.

bool	isNotClipped () const
	Gets whether the element will ignore its parent's clipping rectangle.

void	setMaxSize (dcpp::nub::dimension2du size)
	Sets the maximum size allowed for this element.

void	setMinSize (dcpp::nub::dimension2du size)
	Sets the minimum size allowed for this element.

void	setAlignment (EGUI_ALIGNMENT left, EGUI_ALIGNMENT right, EGUI_ALIGNMENT top, EGUI_ALIGNMENT bottom)
	The alignment defines how the borders of this element will be positioned when the parent element is resized.

EGUI_ALIGNMENT	getAlignLeft () const
	How left element border is aligned when parent is resized.

EGUI_ALIGNMENT	getAlignRight () const
	How right element border is aligned when parent is resized.

EGUI_ALIGNMENT	getAlignTop () const
	How top element border is aligned when parent is resized.

EGUI_ALIGNMENT	getAlignBottom () const
	How bottom element border is aligned when parent is resized.

virtual void	updateAbsolutePosition ()
	Updates the absolute position.

virtual IGUIElement *	getElementFromPoint (const dcpp::nub::position2di &point)
	Returns the topmost GUI element at the specific position.

virtual bool	isPointInside (const dcpp::nub::position2di &point) const
	Returns true if a point is within this element.

virtual void	addChild (IGUIElement *child)
	Adds a GUI element as new child of this element.

virtual void	removeChild (IGUIElement *child)
	Removes a child.

virtual void	remove ()
	Removes this element from its parent.

virtual void	draw ()
	Draws the element and its children.

virtual void	OnPostRender (dcpp::uint32_kt timeMs)
	animate the element and its children.

virtual void	move (dcpp::nub::position2di absoluteMovement)
	Moves this element.

virtual bool	isVisible () const
	Returns true if element is visible.

virtual bool	isTrulyVisible () const
	Check whether the element is truly visible, taking into accounts its parents' visibility.

virtual void	setVisible (bool visible)
	Sets the visible state of this element.

virtual bool	isSubElement () const
	Returns true if this element was created as part of its parent control.

virtual void	setSubElement (bool subElement)
	Sets whether this control was created as part of its parent.

void	setTabStop (bool enable)
	If set to true, the focus will visit this element when using the tab key to cycle through elements.

bool	isTabStop () const
	Returns true if this element can be focused by navigating with the tab key.

void	setTabOrder (dcpp::int32_kt index)
	Sets the priority of focus when using the tab key to navigate between a group of elements.

dcpp::int32_kt	getTabOrder () const
	Returns the number in the tab order sequence.

void	setTabGroup (bool isGroup)
	Sets whether this element is a container for a group of elements which can be navigated using the tab key.

bool	isTabGroup () const
	Returns true if this element is a tab group.

IGUIElement *	getTabGroup ()
	Returns the container element which holds all elements in this element's tab group.

virtual bool	isEnabled () const
	Returns true if element is enabled.

virtual void	setEnabled (bool enabled)
	Sets the enabled state of this element.

virtual void	setText (const wchar_t *text)
	Sets the new caption of this element.

virtual const wchar_t *	getText () const
	Returns caption of this element.

virtual void	setToolTipText (const wchar_t *text)
	Sets the new caption of this element.

virtual const dcpp::nub::wstring &	getToolTipText () const
	Returns caption of this element.

virtual dcpp::int32_kt	getID () const
	Returns id. Can be used to identify the element.

virtual void	setID (dcpp::int32_kt id)
	Sets the id of this element.

virtual bool	OnEvent (const SEvent &event) override
	Called if an event happened.

virtual bool	bringToFront (IGUIElement *element)
	Brings a child to front.

virtual bool	sendToBack (IGUIElement *child)
	Moves a child to the back, so it's siblings are drawn on top of it.

virtual const dcpp::nub::list< IGUIElement * > &	getChildren () const
	Returns list with children of this element.

virtual IGUIElement *	getElementFromId (dcpp::int32_kt id, bool searchchildren=false) const
	Finds the first element with the given id.

bool	isMyChild (IGUIElement *child) const

bool	getNextElement (dcpp::int32_kt startOrder, bool reverse, bool group, IGUIElement &first, IGUIElement &closest, bool includeInvisible=false, bool includeDisabled=false) const
	searches elements to find the closest next element to tab to

EGUI_ELEMENT_TYPE	getType () const
	Returns the type of the gui element.

virtual bool	hasType (EGUI_ELEMENT_TYPE type) const
	Returns true if the gui element supports the given type.

virtual const dcpp::char_kt *	getTypeName () const
	Returns the type name of the gui element.

virtual const dcpp::char_kt *	getName () const
	Returns the name of the element.

virtual void	setName (const dcpp::char_kt *name)
	Sets the name of the element.

virtual void	setName (const dcpp::nub::string &name)
	Sets the name of the element.

virtual void	serializeAttributes (dcpp::io::IAttributes out, dcpp::io::SAttributeReadWriteOptions options=0) const override
	Writes attributes of the scene node.

virtual void	deserializeAttributes (dcpp::io::IAttributes in, dcpp::io::SAttributeReadWriteOptions options=0) override
	Reads attributes of the scene node.

Public Member Functions inherited from dcpp::IReferenceCounted
	IReferenceCounted ()
	Constructor.

virtual	~IReferenceCounted ()
	Destructor.

void	grab () const
	Grabs the object. Increments the reference counter by one.

bool	drop () const
	Drops the object. Decrements the reference counter by one.

dcpp::int32_kt	getReferenceCount () const
	Get the reference count.

const dcpp::char_kt *	getDebugName () const
	Returns the debug name of the object.

Public Member Functions inherited from dcpp::IEventReceiver
virtual	~IEventReceiver ()
	Destructor.

Additional Inherited Members
Protected Member Functions inherited from dcpp::gui::IGUIElement
void	addChildToEnd (IGUIElement *child)

void	recalculateAbsolutePosition (bool recursive)

Protected Member Functions inherited from dcpp::IReferenceCounted
void	setDebugName (const dcpp::char_kt *newName)
	Sets the debug name of the object.

Protected Attributes inherited from dcpp::gui::IGUIElement
dcpp::nub::list< IGUIElement * >	Children
	List of all children of this element.

IGUIElement *	Parent
	Pointer to the parent.

dcpp::nub::recti	RelativeRect
	relative rect of element

dcpp::nub::recti	AbsoluteRect
	absolute rect of element

dcpp::nub::recti	AbsoluteClippingRect
	absolute clipping rect of element

dcpp::nub::recti	DesiredRect

dcpp::nub::recti	LastParentRect
	for calculating the difference when resizing parent

dcpp::nub::rectf	ScaleRect
	relative scale of the element inside its parent

dcpp::nub::dimension2du	MaxSize
	maximum and minimum size of the element

dcpp::nub::dimension2du	MinSize

bool	IsVisible
	is visible?

bool	IsEnabled
	is enabled?

bool	IsSubElement
	is a part of a larger whole and should not be serialized?

bool	NoClip
	does this element ignore its parent's clipping rectangle?

dcpp::nub::wstring	Text
	caption

dcpp::nub::wstring	ToolTipText
	tooltip

dcpp::nub::string	Name
	users can set this for identifying the element by string

dcpp::int32_kt	ID
	users can set this for identifying the element by integer

bool	IsTabStop
	tab stop like in windows

dcpp::int32_kt	TabOrder
	tab order

bool	IsTabGroup
	tab groups are containers like windows, use ctrl+tab to navigate

EGUI_ALIGNMENT	AlignLeft
	tells the element how to act when its parent is resized

EGUI_ALIGNMENT	AlignRight

EGUI_ALIGNMENT	AlignTop

EGUI_ALIGNMENT	AlignBottom

IGUIEnvironment *	Environment
	GUI Environment.

EGUI_ELEMENT_TYPE	Type
	type of element

Detailed Description

Single line edit box for editing simple text.

This element can create the following events of type EGUI_EVENT_TYPE:

EGET_EDITBOX_ENTER
EGET_EDITBOX_CHANGED
EGET_EDITBOX_MARKING_CHANGED

Member Function Documentation

◆ enableOverrideColor()

virtual void dcpp::gui::IGUIEditBox::enableOverrideColor ( bool enable )

pure virtual

Sets if the text should use the override color or the color in the gui skin.

Parameters

enable If set to true, the override color, which can be set with IGUIEditBox::setOverrideColor is used, otherwise the EGDC_BUTTON_TEXT color of the skin.

◆ getActiveFont()

virtual IGUIFont * dcpp::gui::IGUIEditBox::getActiveFont ( ) const

pure virtual

Get the font which is used right now for drawing.

Currently this is the override font when one is set and the font of the active skin otherwise

◆ getOverrideFont()

virtual IGUIFont * dcpp::gui::IGUIEditBox::getOverrideFont ( ) const

pure virtual

Gets the override font (if any)

Returns: The override font (may be 0)

◆ getTextDimension()

virtual dcpp::nub::dimension2du dcpp::gui::IGUIEditBox::getTextDimension ( )

pure virtual

Gets the size area of the text in the edit box.

Returns: The size in pixels of the text

◆ isAutoScrollEnabled()

virtual bool dcpp::gui::IGUIEditBox::isAutoScrollEnabled ( ) const

pure virtual

Checks to see if automatic scrolling is enabled.

Returns: true if automatic scrolling is enabled, false if not

◆ isDrawBackgroundEnabled()

virtual bool dcpp::gui::IGUIEditBox::isDrawBackgroundEnabled ( ) const

pure virtual

Checks if background drawing is enabled.

Returns: true if background drawing is enabled, false otherwise

◆ isDrawBorderEnabled()

virtual bool dcpp::gui::IGUIEditBox::isDrawBorderEnabled ( ) const

pure virtual

Checks if border drawing is enabled.

Returns: true if border drawing is enabled, false otherwise

◆ isMultiLineEnabled()

virtual bool dcpp::gui::IGUIEditBox::isMultiLineEnabled ( ) const

pure virtual

Checks if multi line editing is enabled.

Returns: true if multi-line is enabled, false otherwise

◆ isOverrideColorEnabled()

virtual bool dcpp::gui::IGUIEditBox::isOverrideColorEnabled ( void ) const

pure virtual

Checks if an override color is enabled.

Returns: true if the override color is enabled, false otherwise

◆ isWordWrapEnabled()

virtual bool dcpp::gui::IGUIEditBox::isWordWrapEnabled ( ) const

pure virtual

Checks if word wrap is enabled.

Returns: true if word wrap is enabled, false otherwise

◆ setAutoScroll()

virtual void dcpp::gui::IGUIEditBox::setAutoScroll ( bool enable )

pure virtual

Enables or disables automatic scrolling with cursor position.

Parameters

enable If set to true, the text will move around with the cursor position

◆ setCursorChar()

virtual void dcpp::gui::IGUIEditBox::setCursorChar ( const wchar_t cursorChar )

pure virtual

Set the character used for the cursor.

By default it's "_"

◆ setDrawBorder()

virtual void dcpp::gui::IGUIEditBox::setDrawBorder ( bool border )

pure virtual

Turns the border on or off.

Parameters

border true if you want the border to be drawn, false if not

◆ setMax()

virtual void dcpp::gui::IGUIEditBox::setMax ( dcpp::uint32_kt max )

pure virtual

Sets the maximum amount of characters which may be entered in the box.

Parameters

max	Maximum amount of characters. If 0, the character amount is infinity.

◆ setMultiLine()

virtual void dcpp::gui::IGUIEditBox::setMultiLine ( bool enable )

pure virtual

Enables or disables newlines.

Parameters

enable If set to true, the EGET_EDITBOX_ENTER event will not be fired, instead a newline character will be inserted.

◆ setOverrideColor()

virtual void dcpp::gui::IGUIEditBox::setOverrideColor ( dcpp::video::SColor color )

pure virtual

Sets another color for the text.

If set, the edit box does not use the EGDC_BUTTON_TEXT color defined in the skin, but the set color instead. You don't need to call IGUIEditBox::enableOverrrideColor(true) after this, this is done by this function. If you set a color, and you want the text displayed with the color of the skin again, call IGUIEditBox::enableOverrideColor(false);

Parameters

color New color of the text.

◆ setOverrideFont()

virtual void dcpp::gui::IGUIEditBox::setOverrideFont ( IGUIFont * font = 0 )

pure virtual

Sets another skin independent font.

If this is set to zero, the button uses the font of the skin.

Parameters

font	New font to set.

◆ setPasswordBox()

virtual void dcpp::gui::IGUIEditBox::setPasswordBox	(	bool	passwordBox,
		wchar_t	passwordChar = `L' *'`
	)

pure virtual

Sets whether the edit box is a password box. Setting this to true will.

disable MultiLine, WordWrap and the ability to copy with ctrl+c or ctrl+x

Parameters

passwordBox	true to enable password, false to disable
passwordChar	the character that is displayed instead of letters

◆ setTextAlignment()

virtual void dcpp::gui::IGUIEditBox::setTextAlignment	(	EGUI_ALIGNMENT	horizontal,
		EGUI_ALIGNMENT	vertical
	)

pure virtual

Sets text justification mode.

Parameters

horizontal	EGUIA_UPPERLEFT for left justified (default), EGUIA_LOWERRIGHT for right justified, or EGUIA_CENTER for centered text.
vertical	EGUIA_UPPERLEFT to align with top edge, EGUIA_LOWERRIGHT for bottom edge, or EGUIA_CENTER for centered text (default).

◆ setWordWrap()

virtual void dcpp::gui::IGUIEditBox::setWordWrap ( bool enable )

pure virtual

Enables or disables word wrap.

Parameters

enable If set to true, words going over one line are broken to the next line.

The documentation for this class was generated from the following file:

include/duckcpp/core/engine/IGUIEditBox.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ enableOverrideColor()

◆ getActiveFont()

◆ getOverrideFont()

◆ getTextDimension()

◆ isAutoScrollEnabled()

◆ isDrawBackgroundEnabled()

◆ isDrawBorderEnabled()

◆ isMultiLineEnabled()

◆ isOverrideColorEnabled()

◆ isWordWrapEnabled()

◆ setAutoScroll()

◆ setCursorChar()

◆ setDrawBorder()

◆ setMax()

◆ setMultiLine()

◆ setOverrideColor()

◆ setOverrideFont()

◆ setPasswordBox()

◆ setTextAlignment()

◆ setWordWrap()
